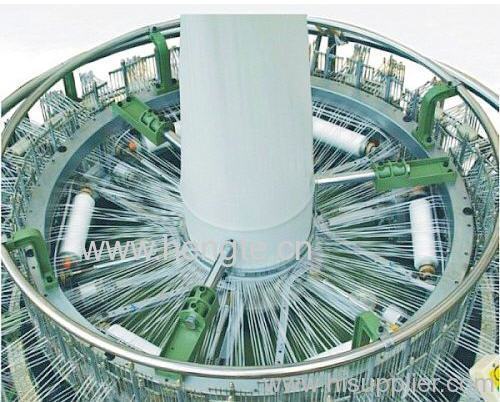

Model No.: SBY-800x6GII

This machine is our patent product, it is the newest type circular loom in China, which its energy-saving index has reach the top in our domestic mark

HIGH EFFICIENCY
There are 6 shuttles in the loom machine and the speed of main engine is 150r/min.The speed of weaving is about 135m/h.The output of production is more than3,000m per day,
LOW POWER CONSUMPTIONS
The loom machine of type "I" can reducing the power consumptions at least about 30%;and both of the loom machines of type "II"& type "III", ever can reduce the power consumptions more than 50% comparing with the traditional 4 shuttles loom machines.
LOWER NOISES
The noises of the loom machine is lower 5 dB(A) than the data of Occupation Standards.
SUITABLE FOR THE WEAVING FIBERS OF LOWER DNIER
The loom machine suits more to weave all the kinds of the flat fibers based the fine scope of Denier400--1800(45---200tex.).

CONSTRUCTIONS&FUNCTIONS
SHUTTLES
The 6 shuttles are rolling along the special orbits of the loom machine. The wheels of shuttle are not born the centrifugal force of the shuttle. The warps have not been pressed by the wheels of shuttle. Since the shuttles can turn round without the lubricant, so it's quite convenience& cleaning while through the warps.
LUBRICANT SYSTEMS
The loom machine has been compelling lubricated by the oil pump. The loom machine would be stop after shown the alarms by sounds or lights while the shortage of lubricating oils.
THE MACHINE WOULD BE STOP AUTOMATICALLY
The loom machine would be stop automatically while the warps or the wefts been broken or finished and the loom machine can distinguish the area where the warps or the wefts been broken or finished accurately & immediately.
PALM FRAME & PALM WIRES
Both of them are the newly Patent Products of our company. The palm frame is the style of the tension and the palm wires are compounded with the Corundum. The service life of the palm wires have been extended much longer.
THE INTELLIGENT LIFTING SYSTEMS
The loom machine of type "III" has added the intelligent lifting constructions on the basis of the loom machine of type "II", It's quite convenience& easy for the purpose of changing the densities of the wefts. The precisions of weaving rollers would be more accurately and smoothly.

Type	SBY-800×6G II
Quantity of Shuttles (pcs)	6
Folded Diameter (mm)	160-800
Quantity of Warps(Most pcs)	648-720
Speed of Main Engine (r/min)	135-160
Weaving Speed (m/h)	120-144
Power of Main Engine (kw)	3
Form of Speed Change	Frequency Converter
Lifting Style of Main Engine	Mechanical Lifting
Bobbin size (DxL, mm)	ø38(31) x230
Diameter of Wefts Roller(Max, mm)	ø90
Dimension (LxWxH, mm)	8700x2300x3000
Total gross weight (kg)	2500
